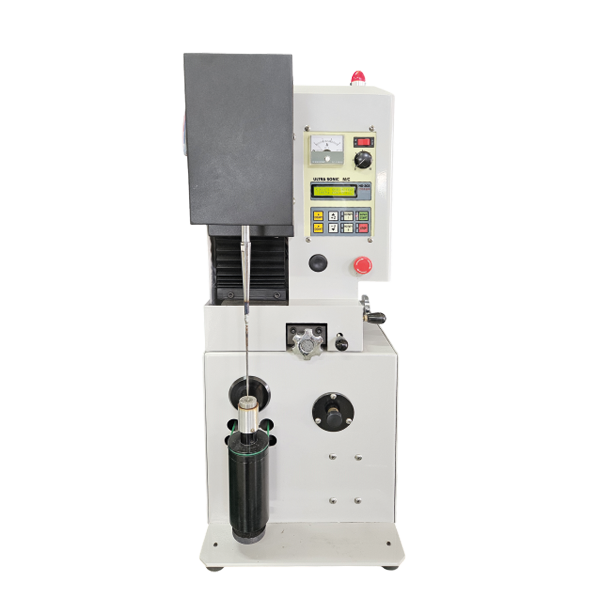

HD-303 NC Servo Automatic Ultrasonic Polishing Machine
- Advanced NC Ultrasonic Control System
- High Automation & Labor Efficiency
- Wide Range of Die Size Compatibility
- Compact & Space-Saving Design
- Rotation & Swing Mode
Specifications
| Power Supply | AC 220V / 50-60 Hz |
|---|---|
| Ultrasonic Output Power | 200 W |
| Operating Frequency | 25 kHz |
| Ultrasonic Transducer | BLT Type |
| Cooling System | Forced Air Cooling |
| Control System | NC Servo Control |
| Frequency Tuning | Automatic |
| Die Holder | Magnetic Type |
| Dimensions | 300 × 400 × 790 mm |
| Weight | 45 kg |
| Die Hole Diameter Range | 0.010 – 6.0 mm |
Features
- Advanced NC Ultrasonic Control System The HD-303 adopts an advanced NC control system instead of the conventional analog ultrasonic control system, enabling highly precise, stable, and consistent polishing of diamond wire drawing dies. This advanced control technology provides superior polishing performance, minimizes quality variation, and meets the demanding precision requirements of modern wire drawing applications.
- High Automation & Labor Efficiency Designed for unattended and highly automated operation, the HD-303 enables a single operator to simultaneously monitor and manage 50 to 100 automatic polishing machines. This significantly increases productivity while reducing labor requirements and operating costs.
- Wide Range of Die Size Compatibility The HD-303 is capable of precision polishing wire drawing dies with inner diameters ranging from 0.01 mm to 6.0 mm. This wide processing range allows the machine to handle various die sizes used in different wire drawing applications.
- Compact & Space-Saving Design The compact machine design minimizes installation space while providing outstanding performance, making it ideal for both production facilities and precision die maintenance workshops.
- Rotation & Swing Mode The die holder provides two motion modes: Rotation Mode and Swing Mode, allowing optimized polishing conditions for various wire drawing dies.
