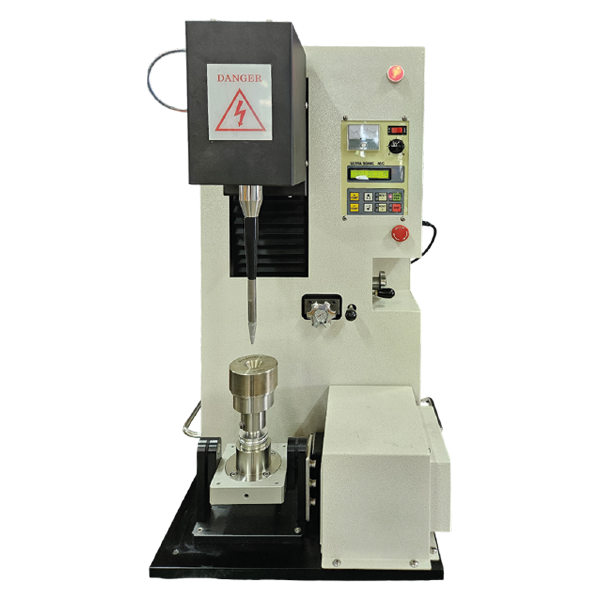

HD-505 NC Servo Automatic Ultrasonic Die Shaping and Polishing Machine
- Dual Functionality
- Enhanced Efficiency
- Streamlined System
Specifications
| Power Supply | AC 220V / 50-60 Hz |
|---|---|
| Ultrasonic Output Power | 200 W |
| Operating Frequency | 20 kHz |
| Ultrasonic Transducer | BLT Type |
| Cooling System | Forced Air Cooling |
| Control System | NC Servo Control |
| Frequency Tuning | Automatic |
| Die Holder | Spring type |
| Die Hole Diameter Range | 1.0 – 35 mm |
| Dimensions | 380 × 510 × 810 mm |
| Weight | 65 kg |
Features
- High-quality ultrasonic shaping and polishing for workpieces from 1 mm to 35 mm
- Both shaping and polishing can be performed on a single machine through the forward and backward movement of the die holder.
- The holder area is widely open, allowing even large-case dies to be processed without interference.
- More powerful ultrasonic performance and a dedicated horn optimized for large-sized workpieces significantly reduce processing time.
- A self-contained pressure system eliminates the need for compressors or oil hoses required by hydraulic or pneumatic systems, resulting in a clean, simple, and streamlined design.
