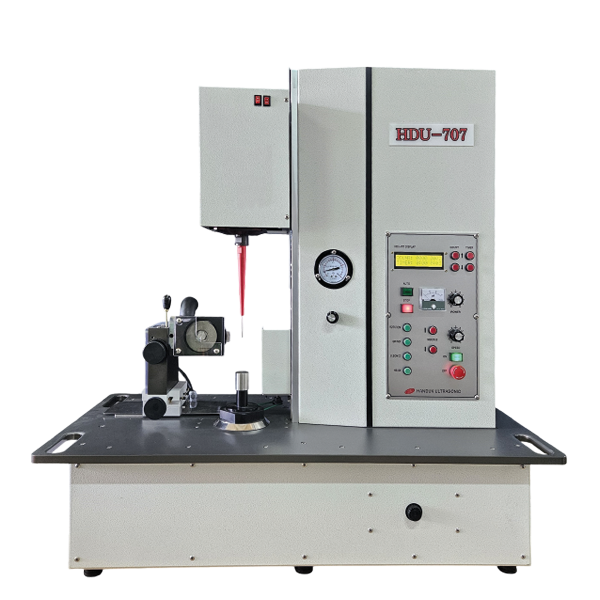

HD-707 Semi-Automatic Ultrasonic Shaping Machine
- Consistent, Powerful Machining
- Advanced Diamond Grinder
- Precision & Safety Built-In
- Ergonomic & User-Friendly
- Hassle-Free Maintenance
Specifications
| Power Supply | AC 220V |
|---|---|
| Ultrasonic Output Power | 200 W |
| Operating Frequency | 20 kHz |
| Frequency Tuning | Automatic |
| Transducer Cooling | Air-cooled |
| Horn Rotation Speed | 800 rpm |
| Die Holder Rotation Speed | 0~600 rpm |
| Timer / Cycle Counter | Seconds / Cycles |
| Die Hole Diameter Range | 0.1 – 10 mm |
| Die Holder | Pneumatic Fine Adjustment |
| Dimensions | 970 x 470 x 990 mm |
| Weight | 125 kg |
| Pin Grinder | Diamond Wheel (Rotation Speed: 4500 rpm) |
| Drive System | Pneumatic cylinder drive with linear bearing and sensor-controlled operation |
Features
- High-quality ultrasonic machining capability from 0.1 mm to 10 mm
- HD Ultrasonic delivers concentrated downward energy without lateral dispersion.
- HD Ultrasonic maintains consistent power output without interruption or power loss, even under external pressure.
- Equipped with an angle-adjustable grinder for precise pin angle machining.
- Diamond grinder generates significantly less dust than conventional stone grinders and provides a longer service life.
- Adjustable grinder speed allows users to set the optimal operating speed for their application.
- Worn pins can be quickly restored using the grinder after a single machining cycle.
- The pneumatic cylinder maintains a constant applied load during machining, eliminating die defects caused by load variations.
- The head–grinder collision prevention system disables grinder operation whenever the machining head is lowered, preventing accidental contact.
- User-friendly button-operated interface for convenient operation.
- Ergonomic design minimizes arm fatigue, ensuring comfortable operation even during extended working hours.
- Easy maintenance with quick replacement of bearings, sensors, relays, and switches
