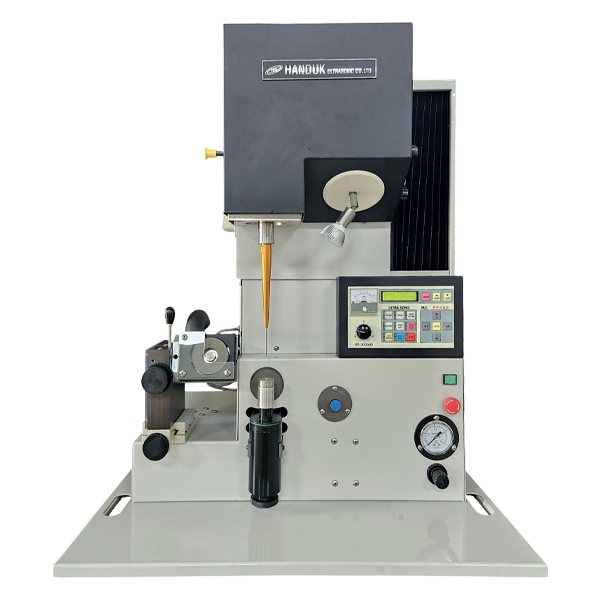

HD-3000 US + NC Servo Automatic Ultrasonic Die Shaping and Polishing Machine
- Proven Precision
- Advanced Polishing Mechanism
- Automated Grinding & Control
- Reliable & Maintainable
Specifications
| Power Supply | AC 220V |
|---|---|
| Ultrasonic Output Power | 200 W |
| Operating Frequency | 20 kHz |
| Ultrasonic Transducer | BLT Type |
| Cooling System | Forced Air Cooling |
| Control System | NC Servo Control |
| Pin Grinder | Diamond Wheel (Rotation Speed: 2820 rpm) |
| Frequency Tuning | Automatic |
| Die Holder | Magnetic Type |
| Die Hole Diameter Range | 0.010 – 4.0 mm |
| Dimensions | 750 × 600 × 860 mm |
| Weight | 117 kg |
Features
- Decades of Ultrasonic Expertise Built on decades of accumulated ultrasonic expertise, this system delivers exceptional precision in shaping and polishing drawing dies.
- Adjustable Magnetic Die Holder & Counter-Rotating Polishing System The die holder with swing function and adjustable magnetic force enables shaping of wire drawing dies for fine, medium, and thick wire applications. During polishing, the ultrasonic pin horn rotates at 900 rpm while the die holder rotates in the opposite direction at 100 rpm. This counter-rotating mechanism provides stable polishing performance and helps achieve uniform die geometry and equal bearing length.
- Automatic Pin Grinding System The machine is equipped with a grinder for precision pin grinding. Two adjustment knobs allow easy adjustment of the grinding angle and the grinder position (forward/backward).
- Servo-Controlled Head System The servo-controlled head system enables horizontal and vertical movement of the shaping head.
- Ultrasonic Timer & Count Function The ultrasonic timer and count functions are provided for shaping process control.
- Reliable System Design The machine features a practical system design with convenient access to key components, enabling efficient maintenance and stable long-term operation.
