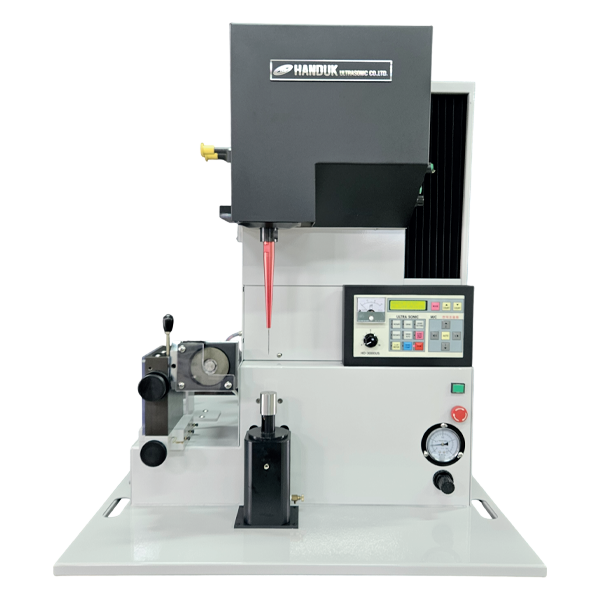

HD-3000 US NC Servo Automatic Ultrasonic Shaping Machine
- High-Precision Shaping
- Automated Grinding & Control
- Versatile Dual Rotation
- Reliable & Maintainable
Specifications
| Power Supply | AC 220V |
|---|---|
| Ultrasonic Output Power | 200 W |
| Operating Frequency | 20 kHz |
| Ultrasonic Transducer | BLT Type |
| Cooling System | Forced Air Cooling |
| Control System | NC Servo Control |
| Pin Grinder | Diamond Wheel (Rotation Speed: 2820 rpm) |
| Frequency Tuning | Automatic |
| Die Holder | Pneumatic Type |
| Die Hole Diameter Range | 0.010 – 4.0 mm |
| Dimensions | 750 × 600 × 860 mm |
| Weight | 120 kg |
Features
- Precision Air Pressure Control System The machine adopts a finely adjustable air pressure control system, enabling precision shaping of ultra-fine wire drawing dies with stable and reliable machining performance.
- Automatic Pin Grinding System The machine is equipped with a grinder for precision pin grinding. Two adjustment knobs allow easy adjustment of the grinding angle and the grinder position (forward/backward).
- Servo-Controlled Head System The servo-controlled head system enables horizontal and vertical movement of the shaping head.
- Operator-Friendly Interface The intuitive control system allows operators to become proficient with minimal training. A single operator can efficiently supervise and operate 2 to 4 machines simultaneously, reducing labor costs and processing time while improving overall productivity.
- Ultrasonic Timer & Count Function The ultrasonic timer and count functions are provided for shaping process control.
- Dual Rotation Shaping Modes The machine provides two rotation modes: ultrasonic pin rotation and die holder rotation. Both modes can be selected according to shaping requirements for optimized shaping performance.
- Precise Die Centering The machine enables precise centering between the ultrasonic pin and the die by adjusting the limiters mounted on the head and rear side of the machine, along with the fine adjustment screws beneath the die holder.
- Reliable System Design The machine features a practical system design with convenient access to key components, enabling efficient maintenance and stable long-term operation.
