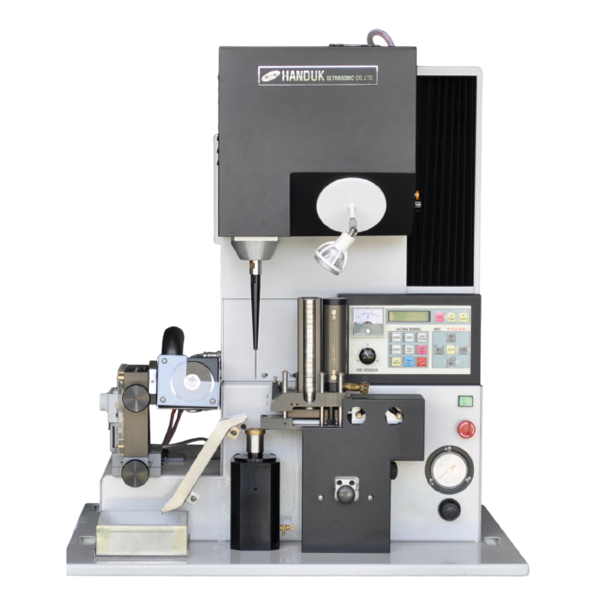

HD-3000 ADC CNC Servo Automatic Ultrasonic Shaping Machine
- Automated Operation for Higher Productivity
- Servo-Controlled Head System
- User-Friendly Operation
- Ultrasonic Timer & Count Function
- Dual Rotation Shaping Modes
- Precise Die Centering
- Automatic Pin Grinding System
- Reliable System Design
Specifications
| Power Supply | AC 220V |
|---|---|
| Ultrasonic Output Power | 200 W |
| Operating Frequency | 20 kHz |
| Ultrasonic Transducer | BLT Type |
| Automatic Die Feeder | Capacity: 24 dies (Die Outer Diameter: Ø25 mm × H8 mm) |
| Automatic Water Supply System | Water is supplied automatically when dies are provided, with adjustable flow rate |
| Pin Grinder | Diamond Wheel (Rotation Speed: 2820 rpm) |
| Control System | CNC Servo Control |
| Frequency Tuning | Automatic |
| Die Holder | Pneumatic Type |
| Die Hole Diameter Range | 0.010 – 4.0 mm |
| Dimensions | 750 × 600 × 860 mm |
| Weight | 122 kg |
Features
- Automated Operation for Higher Productivity The automatic die feeding and water supply systems enable continuous automated operation, maximizing productivity while minimizing operator involvement. The water supply is automatically controlled through a solenoid valve system with adjustable flow rate, ensuring stable and consistent shaping performance.
- Servo-Controlled Head System The servo-controlled head system enables smooth and stable horizontal and vertical movement of the shaping head.
- User-Friendly Operation The intuitive control system enables operators to quickly learn and operate the machine with minimal training. One operator can efficiently operate more than 10 machines simultaneously, maximizing productivity and operational efficiency.
- Ultrasonic Timer & Count Function The ultrasonic timer and count functions are provided for shaping process control.
- Dual Rotation Shaping Modes The machine provides two rotation modes: ultrasonic pin rotation and die holder rotation. Both modes can be selected according to shaping requirements for optimized shaping performance.
- Precise Die Centering The machine enables precise centering between the ultrasonic pin and the die by adjusting the limiters mounted on the head and rear side of the machine, along with the fine adjustment screws beneath the die holder.
- Automatic Pin Grinding System The machine is equipped with a grinder for precision pin grinding. Two adjustment knobs allow easy adjustment of the grinding angle and the grinder position (forward/backward).
- Reliable System Design The machine features a practical system design with convenient access to key components, enabling efficient maintenance and stable long-term operation.
