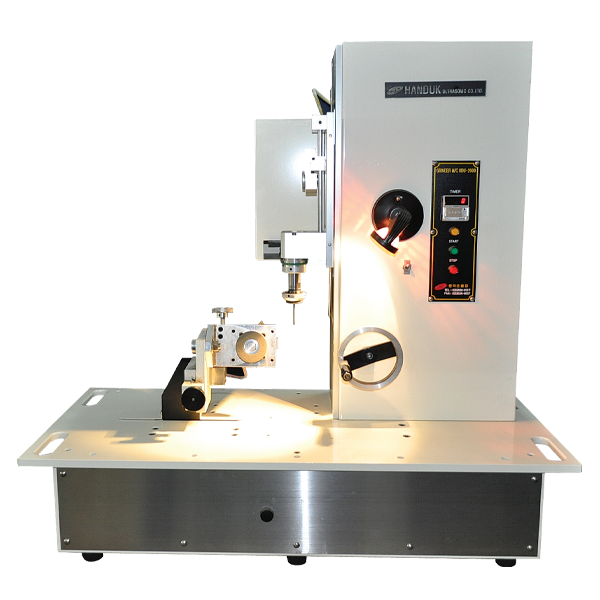

HD-360 Needle Grinding Machine with Protractor
- High-Precision Grinding
- Versatile Adjustments
- User-Friendly
Specifications
| Power Supply | AC 220V, 50/60 Hz |
|---|---|
| Motor Specifications | DC MOTER(DC 24V, 90W, 4500rpm), AC MOTER(AC 100V/110V, 50/60Hz, 40W, 1300/1600rpm) |
| Grinder Drive | Pneumatic Cylinder |
| Grinding Wheel Type | Diamond Wheel |
| Dimensions | 860 x 430 x 940 |
| Weight | 121 kg |
Features
- The HD-360 grinds ultrasonic pins for the HD-303 Ultrasonic Polishing Machine at angles up to 35° with a tolerance of ±1°, improving preparation efficiency and reducing processing time.
- A built-in counter allows setting the number of grinding cycles.
- The machine is equipped with a diamond grinding wheel for excellent durability and grinding performance.
- Two knurled knobs are mounted on the grinder. The large knob allows adjustment of the grinding angle, while the small knob enables forward and backward adjustment of the grinder position.
- The needle holder height is adjustable using the handwheel.
- Easy to operate with minimal operator training.
