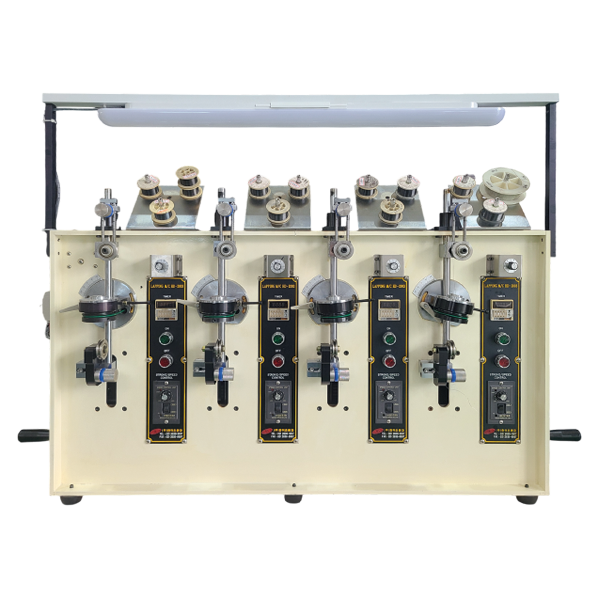

HD-324 Automatic Wire Drawing Die Lapping Machine
- Ultra-Fine Capability
- High Productivity
- Gentle Wire Handling
- Adjustable Speeds
Specifications
| Power Supply | AC 220 V |
|---|---|
| Main Axis | 4 separated holders |
| Angle | 25°(total 50°) |
| Electronic Device | Timer (measuring unit: seconds), speed controller |
| Dimensions | 1110 × 480 × 700 mm |
| Weight | 202 kg |
| Die Hole Diameter Range | 0.01 - 0.1 mm |
Features
- A wire drawing machine specifically designed for ultra-fine wire processing in the diameter range of 0.01 mm to 0.1 mm.
- Equipped with a smooth wire clamping system that securely holds the wire without causing breakage during installation.
- Features a smooth tension adjustment lever that applies wire tension gently, preventing shock or damage to the wire even during tension setting after clamping.
- Convenient die mounting system that automatically locks the die in place when inserted into the holder, eliminating the need for a conventional cover-type fastening mechanism.
- Adjustable vertical wire travel speed.
- Adjustable die holder rotation speed.
- Increased productivity with four working holders integrated into a single machine.
