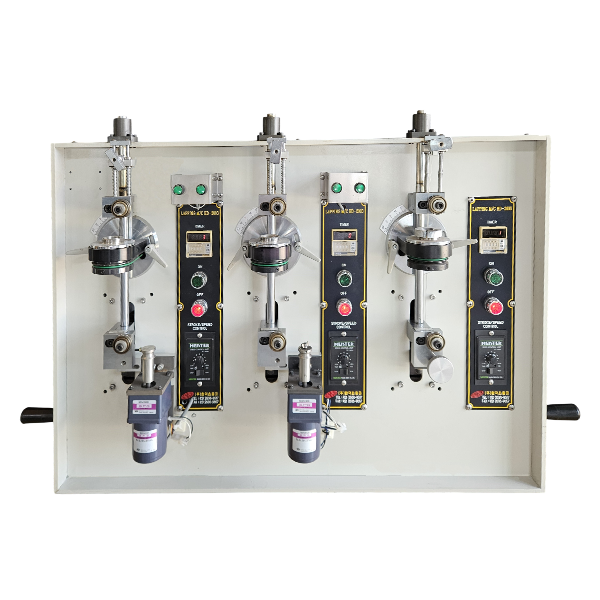

HD-333 Automatic Wire Drawing Die Lapping Machine
- Versatile Range & Control
- Automated Consistency
- Flexible Operation
- Easy Wire Handling
Specifications
| Power Supply | AC 220V |
|---|---|
| Main Axis | 3 separated holders |
| Angle | 25°(total 50°) |
| Electronic Device | Timer (measuring unit: seconds), speed controller |
| Dimensions | 940 x 500 x 700 mm |
| Weight | 168kg |
| Die Hole Diameter Range | 0.1 - 1.0 mm |
Features
- A versatile wire processing machine with a wide working range of 0.1 mm to 1.0 mm.
- Adjustable vertical wire travel speed control.
- Adjustable die rotation speed control.
- Equipped with two automatic wire winding and unwinding units.
- Two automatic wire pulling heads with a button-type mechanism that maintains consistent force, speed, and straightness when drawing the wire after processing.
- Reverse rotation function allows the wire to be released after being pulled.
- Wire drawn by the machine enables more precise wire diameter inspection and measurement.
- Includes one manual wire head.
- Designed for user convenience with a manual wire pulling head, allowing flexible operation: the machine can operate with two automatic heads and one manual head simultaneously depending on the working environment and application needs.
