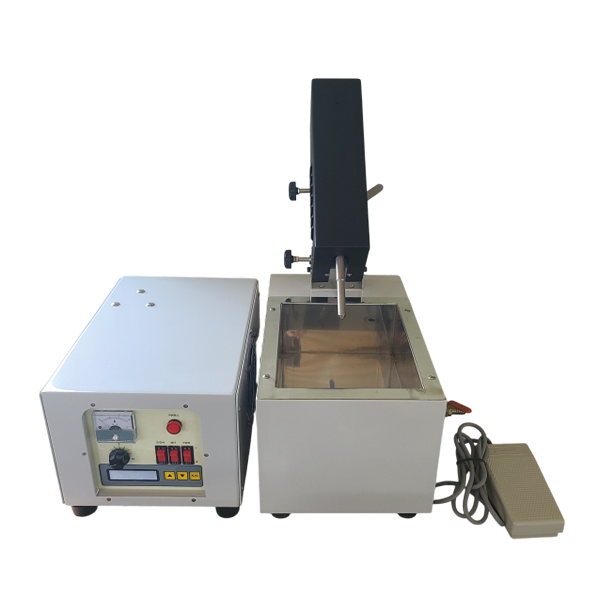

HD-103 Ultrasonic Nozzle Cleaner

  • Powerful Cleaning Performance
  • Easy Operation
  • Foot Pedal Control
  • Adjustable Nozzle Height
mail Inquiry

Specifications

Power Supply AC 220V / 50-60 Hz
Ultrasonic Output Power 200 W
Operating Frequency 20 kHz
Frequency Tuning Automatic
Cooling System Forced Air Cooling
Main Unit Size 250 x 400 x 600 mm
Main Unit Weight 12 kg
Ultrasonic Control Box Size 260 x 370 x 230 mm
Ultrasonic Control Box Weight 13 kg
Water Tank Size 200 x 250 x 100 mm

Features

  • Powerful Cleaning Performance Powerful enough to remove all sludge and sediment within the die, it is far superior to any other method of sludge removal.
  • Easy Operation Very easy to operate. Beginners can fully master its use with brief training.
  • Foot Pedal Control The foot pedal allows the operator to activate the ultrasonic system easily with a simple press of the foot.
  • Adjustable Nozzle Height Nozzle height adjustable via up/down lever.
